High-Quality Vacuum Bellows for Industrial Vacuum Applications
Vacuum bellows play an important role in modern vacuum systems. They connect pipelines, absorb vibration, compensate for displacement, and help maintain stable vacuum performance. Our stainless steel vacuum bellows provide reliable flexibility, clean internal surfaces, and strong sealing performance for different industrial applications.
As a professional manufacturer of metal hose and bellows products, we supply customized vacuum bellows, corrugated vacuum hoses, and braided vacuum hose assemblies for customers in vacuum technology, semiconductor equipment, laboratory systems, coating machines, and precision industrial equipment.
What Is a Stainless Steel Vacuum Bellow?

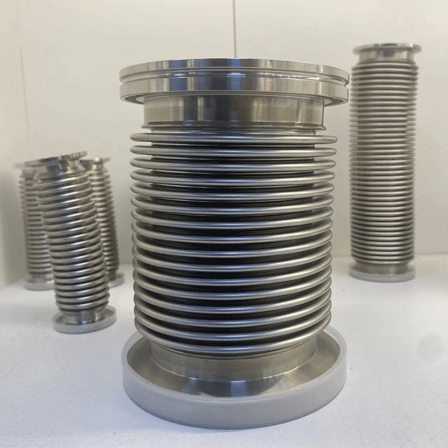

A stainless steel vacuum bellow is a flexible metal component made with thin-wall corrugated stainless steel tubing. The corrugated structure allows the hose to bend, compress, and absorb movement while keeping good airtight performance.
Compared with rubber or plastic hoses, stainless steel vacuum bellows offer better durability, higher temperature resistance, and stronger corrosion resistance. They also help reduce contamination in clean vacuum environments.
Our vacuum bellows can match different connection types, including flange ends, clamp-type ends, welded fittings, and customized interfaces according to the customer’s equipment design.
Product Features
1. Excellent Flexibility
The corrugated structure gives the vacuum bellow good flexibility. It can absorb installation deviation, thermal expansion, vibration, and mechanical movement inside the vacuum pipeline system.
2. Strong Sealing Performance
Vacuum systems require stable sealing. Our vacuum bellows use precision-formed stainless steel corrugations and suitable end fittings to help reduce leakage risk and support long-term vacuum operation.
3. Durable Stainless Steel Structure
We commonly use stainless steel materials such as 304, 316, or 316L according to the working environment. Stainless steel offers good corrosion resistance and mechanical strength, which makes the vacuum bellow suitable for demanding industrial conditions.
4. Optional Stainless Steel Braiding
For applications that need higher pressure resistance or extra protection, we can provide stainless steel braided vacuum hoses. The outer braid improves mechanical strength and protects the corrugated hose from external damage.
5. Customized Design Available
Different vacuum systems need different hose lengths, diameters, flange types, and end connections. We can manufacture vacuum bellows according to drawings, samples, or technical requirements.
Typical Applications of Vacuum Bellows
Our stainless steel vacuum bellows serve many industries, including:
- Semiconductor manufacturing equipment
- Vacuum coating and plating machines
- Laboratory vacuum systems
- Vacuum pumps and vacuum chambers
- Aerospace and research equipment
- Pharmaceutical and chemical equipment
- Precision instruments and automation systems
- High-cleanliness industrial pipelines
These applications require flexible, clean, and reliable vacuum connections. Stainless steel vacuum bellows provide an effective solution for both standard and customized vacuum pipeline layouts.
Corrugated Vacuum Bellows and Braided Vacuum Hoses
We offer different product structures to meet different working conditions.

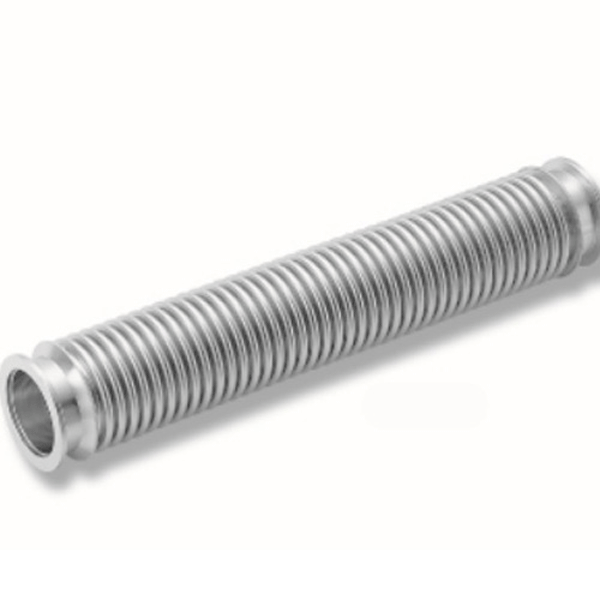

Corrugated Vacuum Bellows
This type provides excellent flexibility and suits general vacuum pipeline connection, vibration absorption, and displacement compensation.
Braided Vacuum Hoses
This type includes an external stainless steel braid. It gives the hose stronger protection and higher mechanical strength, especially in equipment areas with frequent movement or higher stress.
Both types can use customized end fittings to match the customer’s system, including clamp connections, flange connections, and welded ends.
Why Choose Our Vacuum Bellows?
We focus on product quality, practical design, and stable manufacturing. Our team understands that vacuum components must meet strict requirements for sealing, cleanliness, and durability.
When customers choose our vacuum bellows, they can receive:
- Customized production according to drawings or samples
- Stainless steel material options for different environments
- Flexible hose length and diameter selection
- Stable welding and forming quality
- Clean surface treatment
- Reliable packaging for international shipment
- Technical support for product selection
Custom Vacuum Bellow Solutions for Your Equipment
Every vacuum system has different installation space, movement range, and connection requirements. Therefore, we recommend choosing the vacuum bellow based on working pressure, vacuum level, temperature, medium, bending radius, and end connection type.
Our engineering team can help customers select a suitable vacuum bellow solution according to the actual application. Whether you need a short vacuum bellow, a long flexible vacuum hose, or a braided vacuum hose assembly, we can provide a practical and customized solution.
Contact Us for Stainless Steel Vacuum Bellows
If you are looking for stainless steel vacuum bellows, flexible vacuum hoses, or braided vacuum hose assemblies, please contact us with your technical requirements. You can send us the hose size, length, material, connection type, working condition, or product drawing.
We will provide a suitable vacuum bellow solution for your vacuum system and industrial equipment.
