Polishing Grinding and Rust Removal Wheels with Steel, Stainless Steel, Copper and Metal Wire

Categories: ,

Description

Product Description:

The polishing wheel is made of steel wire, stainless steel, copper wire, and other metal wire. It is an industrial brush used for polishing, grinding, and rust removal.
The products are widely used in new tires, shipbuilding, machinery manufacturing industry, food machinery, chemical equipment manufacturing, oil and building industry, aerospace industry, automobile manufacturing, non-ferrous metal surface polishing, polishing machine, rubber industry, metallurgical industry, battery manufacturing, wire stripping machine, pipe inner hole polishing, and other industries.

Product Classification

1.Polishing wheel according to the material can be divided into copper wire wheel, plating copper wire wheel, stainless steel wire wheel, galvanized wire wheel. If the material is not too clear, then all called wire wheel.

2.Polishing wheel according to the process to be divided into A, B, T, pen brush, flat type, long shaft drum, pipe brush, bowl and other non-standard special-shaped.

Specification

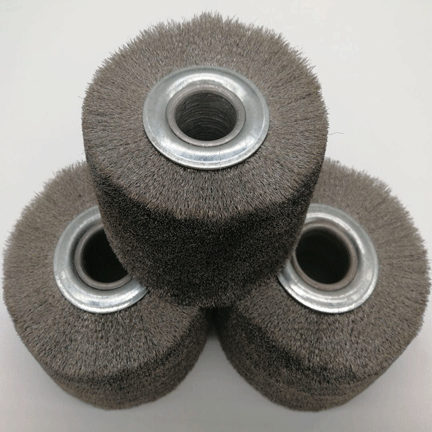

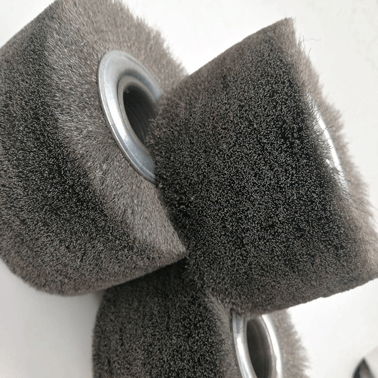

1. Stainless steel wire polishing brush

It is specifically used for polishing, grinding and rust removal of stainless steel which has special requirements on the artifacts material in various industries. Stainless steel specific materials are: 201, 202, 301, 304, 316, 316L (bowl type only 304/316).

OD
25-450
inner bore
6,7,8,9,10,13,15,16,20,22,25.4,26,30,32,35,38,40,45,50,80 etc..
Thickness
3-2000
Wire diameter
0.06,0.08,0.1,0.12,0.15,0.2,0.3,0.5,0.6,0.8,1.0 etc..
Can be customized non-standard specifications

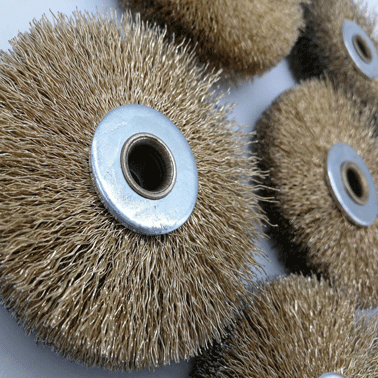

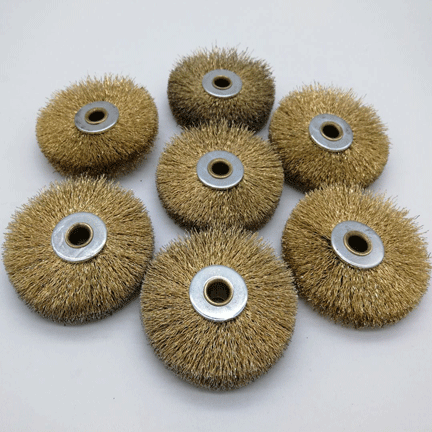

2. Copper wire polishing brush

It is made of pure copper wire, generally used for zipper polishing, polishing of special artifacts, polishing of precision parts or precision instruments, polishing of artifacts after heat treatment. Pure copper wire is soft, so it does not hurt the artifacts in the process of processing and has the function of protecting the artifacts. Generally use 65 copper, copper wire diameter is generally 0.1, 0.13, 0.15, 0.2, 0.3, 0.8.
OD
25-450
inner bore
6,7,8,9,10,13,15,16,20,22,25.4,26,30,32,35,38,40,45,50,80 etc..
thickness
3-2000
wire diameter
0.1,0.12,0.15,0.2,0.3,0.5,0.6,0.8,1.0

3.Steel wire/copper-plated polishing brush

Steel wire/copper wire polishing brush is madeof steel wire, copper wire and other metal wire.It is an industrial brush used for polishing, grinding and rust removal.
OD
25-450
inner bore
6,7,8,9,10,13,15,16,20,22,25.4,26,30,32,35,38,40,45,50,80
Thickness
3-2000
Wire Dianeter
0.1,0.12,0.15,0.2,0.3,0.5,0.6,0.8,1.0

polishing wheel

polishing-wheel

FAQ:

We need to know the following information to give you our best quotation

  • 1. It would be very helpful if you could provide the simple drawing or product’s pictures for our reference.
  • 2.Material of the wire. We have ss201, ss304, ss316,copper, plating copper wires and other steel material for your choices.
  • 3.Thickness of wire part
  • 4.Wire diameter. Such as 0.1,0.12,0.15,0.2,0.3,0.5,0.6,0.8,1.0mm.
  • 5. Outer diameter of whole polishing wheel
  • 6. Inner diameter of middle hole
  • 7.Quantity.
