ss304

SUS 304 Austenite stainless steel is usually referred to as the Japanese name for SS304 or AISI 304 stainless steel.304 stainless steel is a common material of stainless steel, the density of 7.93 g/cm3 and resistance to high temperature 800 ° C.It has good processing performance and high toughness.They are widely used in medical industry and furniture decoration industry and food industry.

Flexible metal hose made with ss304 has good comprehensive performance of corrosion resistance and formability.Stainless steel 304 flexible metal hose  is durable in use , good and inexpensive, will bring the best result of use and good economic benefits to you.

ss321

ss321 is a stabilized stainless steel which offers as its main advantage an excellent resistance to intergranular corrosion following exposure to temperatures in the chromium carbide precipitation range from 800 to 1500° F (427 to 816° C).

ss321 also advantageous for high temperature service because of its good mechanical properties. sss321 offers higher creep and stress rupture properties than ss304.Therefore,if your tube needs to work under high temperature conditions, please select the flexible metal hose made by ss321.

ss316L

Type 316L stainless steel is an extra-low carbon version of the 316 steel alloy. SS316L has good corrosion resistance and is resistant to marine and aggressive industrial atmospheres.The lower carbon content in 316L minimizes deleterious

——–Do you need Wire Braids?

Wire braids are made by the a few metal wires that cross each other or a few metal strip that split to be braided by certain order, with specified angle setting in the outer surface of metallic hose, having the effect that strengthens and shielding.Wire braids not only shares the static load of the metallic hose in axial and radial direction, but also ensures the safe and reliable operation of the metallic hose under the condition that the fluid flows along the pipe and produces pulsation effect. At the same time, it also ensures that the corrugated part of the metallic hose is not directly affected by relative friction, impact and other mechanical damages.The strength of the flexible metal braided hose can be increased by ten to dozens of times.The highest shielding capacity can reach 99.95%.

We make stainless steel tubular shielded braid manufactured with type 304 soft drawn Stainless Steel. They are widely used on flexible metal hoses,both for corrugated and interlock hoses.We supply double layer or single layer braids. The braids are used where highter temperature or greater mechanical strength is needed.

The size range of the hose that we can braid is DN6-600mm.Normal metal hoses use only one layer of mesh sleeves; for special applications, they are also woven in two or three layers, depending on the specific working pressure. Depending on the size of the bellows and the requirements for its use, it is usually made of wire with a diameter of 0.3 to 0.5 mm. The wire is 5~18 per strand, one strip per ingot. The steel wire mesh sleeves produced are mostly 24, 36, 48, and 64 strands, and the bellows with extra large diameters, as well as 96, 120, and 144 strands. The main weaving parameters of the net sleeve are in addition to the number of strands (wire), the diameter of the wire, the number of ingots and the thickness of the strip, as well as the coverage area, the weaving distance, the weaving angle, and the like. They are all important basis for determining the performance of metal hoses.

——–Do you need Metal Hose Fittings?

Firstly,the function of the metal hose fittings is to connect the wire braid with the flexible metal hose as a whole.At the same time, the metal hose fittings are the part of the connection between the metal hose and the metal hose or other pipe fittings and equipment.It ensures that the medium works properly in the piping system.The material of the joint are usually the same as the material of the bellows and mesh sleeve, mostly stainless steel.In order to reduce production costs, some of the larger size of the metal hose in the transmission of corrosive medium is not strong or not corrosive, the metal hose fittings can be made of carbon steel;For the connection of metal hose under corrosive medium working condition, if appropriate measures are taken in the design to avoid contact with the medium, carbon steel can also be used.

Gas hose fitting

1.Material AISI 304,  Nickled carbon steel
2.Size: 1/2” , 3/4‘’ etc
3.Structure:nipple,adaptor,nut,seal,bung
4.Application: the water system, interior piping system, kitchen equipment and so on.
5.Features

• high corrosion resistance
• high temperature resistance
• cryogenic temperature resistance
• perfect mechanical property

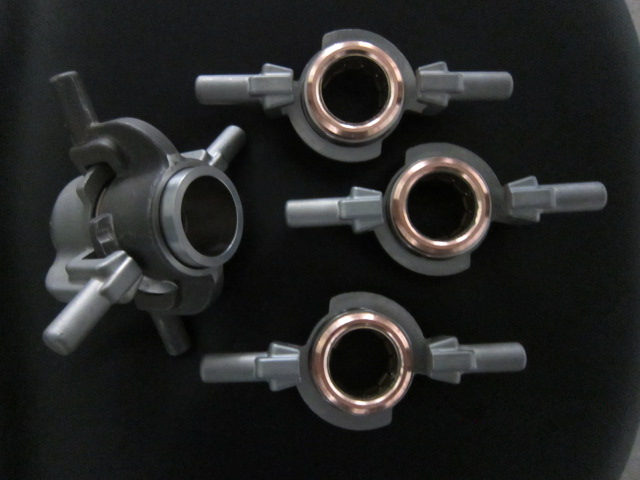

Russain type camlock

Comflex ensure to deliver fully tested products at leading market price within promised time frame.Comflex can offer a wide range of Flexible Metal Hose with Russain type Camlock Fittings to Comflex clients. The offered range of product is made from high grade quality raw material to meet the international quality standard.Comflex products are manufactured under the supervision of best quality experts using advanced technology. Comflex products are highly demanded in the market due to their world class quality and available at leading market prices.

Quick camlock

Comflex quick connecting couplings(camlock coupling) conserve energy and are easy to connect / disconnect without the use of hand tools, for thousands of purposes where products are transfered by pipe or hoses, like Brewing, Chemical, Mining, Fertilizer, Petroleum, Steel Plants, Power Plant and Pneumatic Tools.Especially,we have very special quick release & camlock coupling for liquid gas,such as liquid Amonia, liquid argon,etc..

1.Type:A,B,C,D,E,F,DC,DP.
2.Basic Design:DIN2828,
3.Test design:API598,
4.Thread standard:NPT,BSPT,BSP,DIN2999.
5.Material:AISI304,316, aluminium,brass, etc.
6.Available Size:1/2” , 1 1/4” , 1 1/2” ,  2” , 2 1/2”, 3”, 4”

Flange

1.Material:ss304,ss321,ss316 or carbon steel
2.Standard of flange: EN,ASM,GB. ISO,Japan, Australia
3.Nominal Pressure(PN/MPa)
4.Installation:Floating or Fixed
5.Shape:Welding neck flange ,Slip-on flange ,Socket-welding flange ,Threaded flange ,Lapped joint flange ,Reducing flange ,Blind flange ,Flange scaling face ,Flat face ,Raised face ,Male and,female face ,Female face,Male face ,Ring joint face ,Tongue and groove face ,Tongue face ,Groove face

NPT fitting

NPT stands for National Pipe Tapered threads, also known as ANSI/ASME B1.20.1 pipe threads. It is a U.S. standard for measuring tapered threads on threaded pipes and fittings. Sometimes referred to as MPT (male pipe threads), NPT threads are not interchangeable with NPS (National Pipe Straight) threads. Unlike straight threads found on a bolt, a taper thread will pull tight, making a closer seal.

1.NPT thread: general sealed cylindrical pipe thread and general sealed conical pipe thread
2.Size range:1/16”-2”
3.Feature:

• Angle between taper and center axis of pipe is 1° 47’ 24” (1.7800°)
• Truncation of roots and crests are flat
• 60° thread angle
• Pitch is measured in threads per inch (TPI)

BSP Fitting

BSP（British Standard Pipe) according to the shape can be devided into:BSPP（British Standard Pipe Parallel）and BSPT（British Standard Pipe Taper）。

BSPT (British Standard Pipe Thread) is similar to NPT except for one important difference. The angle across the flanks of threads (if you sliced the fitting in half long-ways and measured the angle from root to crest to root) is 55 degrees instead of 60 degrees as it is for NPT. This is a popular fitting in China and Japan but is very rarely used in North America unless the equipment to which it is attached was imported.

BSPP (British Standard Parallel Pipe) is most popular in the UK, Europe, Asia, Australia, New Zealand and South Africa. It is a parallel thread fitting that uses a bonded seal ring to do the sealing. This bonded ring seal is sandwiched in-between a shoulder on the male fitting and the face of the female fitting and is squeezed in place.

gas hose

Russain type camlock

camlock600

flange

hose with fittings

BSP

——–Do you need Pipe End?

A pipe end is the description of how the section of pipe ends. There are three main types of pipe ends: beveled, threaded or plain. Understanding pipe ends is important when designing a piping system since it would be inappropriate for the designer to specify a threaded connection for a large diameter pipe or to specify a welded end when connecting to a threaded component.

BEVEL END

A bevel is a surface that is not at a right angle (perpendicular) to another surface. The standard angle on a pipe bevel is 37.5° but other non standard angles can be produced. Beveling of pipe or tubing is to prepare the ends for welding. However, it can also be used for deburring the cut ends for safety or aesthetic reasons. Bevel end is abbreviated on drawings as BE.

The beveling process is generally automated. This is because a pipe beveling machine can cut the bevel much faster than hand grinding, flame cutting or turning the pipe on a lathe. Further, the automated process ensures that there is an accurate and consistant pipe bevel each time. The automated process is much safer as operating personnel are not exposed to the same hazards as a person beveling the pipe.

This is the most commonly used end and is used on pipe, pipe nipples, and swage nipples.

THREADED END

Typically used on pipe 3″ and smaller, threaded connections are referred to as screwed pipe. With tapered grooves cut into the ends of a run of pipe, screwed pipe and screwed fittings can easily be assembled without welding or other permanent means of attachment. In the United States, the standard pipe thread is National Pipe Thread (NPT). The reason for this is that as NPT connections are assembled, they become increasingly more difficult for the process to leak. The standard taper for NPT pipe is 3/4″ for every foot. Threaded End is abbreviated on drawings as TE.

Threaded fittings have threads that are either male or female. Male threads are cut into the outside of a pipe or fitting, while female threads are cut into the inside of the fitting. As screwed pipe and fittings are assembled, two pieces are pulled together. The distance that is pulled together is called the thread engagement.

PLAIN END

A pain end pipe is a pipe that has been cut at 90° perpendicular to the pipe run. The reason pipe would be specified as plain end rather than beveled end is when the pipe will be used in a socket weld connection or for use with a slip-on flange.

Professional Flexible Metal Hose Manufacturing Co

We are a professional metalic hose manufacturing Co. In our factory we have a lot of necessary manufacture facility for high quality metalic hose.

• Mechanical metalic hose making machine: DN6-DN40
• Spiral metalic hose machine: DN8-DN20/DN25-50
• Tube welding machine: DN32-DN350
• Hydraulic metalic hose making machine: DN32-DN350
• Elastomer metalic hose making machine: DN15-DN150
• Wire braiding machine: 24-156 spindle

Comflex Industrial Co.,Ltd Customer Base

Comflex flexible metal hose are sold to countries all over the world, especially in Russia, Ukraine, Australia, Singapore, the United States etc.,which are well received and trusted by Comflex customers.Many customers have established long-term business cooperation with Comflex. We are committed to providing one-stop service to our customers, answering questions online and ensuring that you can purchase the products you want. Are you still waiting for? Now fill in your contact information and your requirement in the form.Send it! We will reply you as soon as possible.
