Introduction
Polytetrafluoroethylene (PTFE), commonly known by the trade name Teflon®, is one of the most versatile fluoropolymers, renowned for its exceptional chemical resistance, thermal stability, low friction, and electrical insulating properties. Within industrial fluid handling systems, PTFE hoses and derived products occupy a critical niche, offering performance beyond what conventional rubber or thermoplastic hoses can deliver. This article provides a comprehensive yet accessible overview of PTFE hose types, performance features, design considerations, and derivative innovations.
1. Types of PTFE Hoses
PTFE hose constructions vary primarily by internal geometry and reinforcement. The two dominant types are:

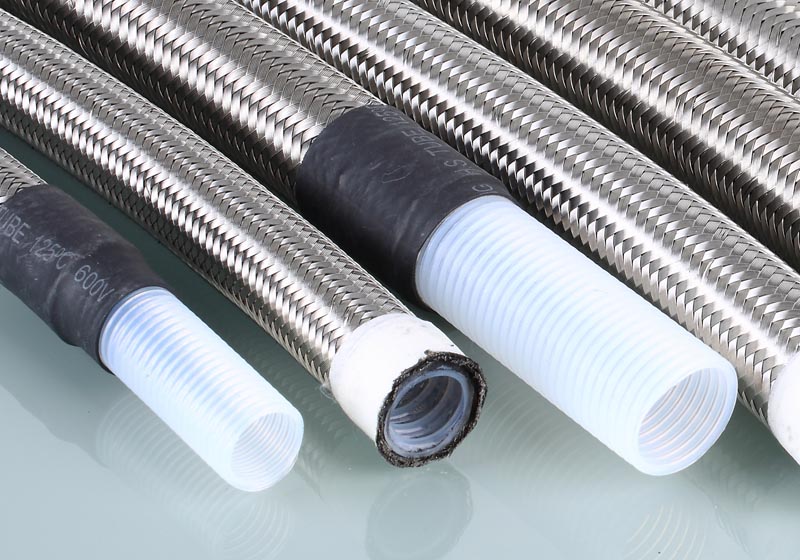

Smooth-bore (or smooth inner core) PTFE hoses: These hoses have a straight, non-convoluted inner tube made of virgin or modified PTFE, reinforced with a metal braid (typically 304/316 stainless steel). They are ideal when minimal flow resistance, cleanability, and laminar flow are priorities.

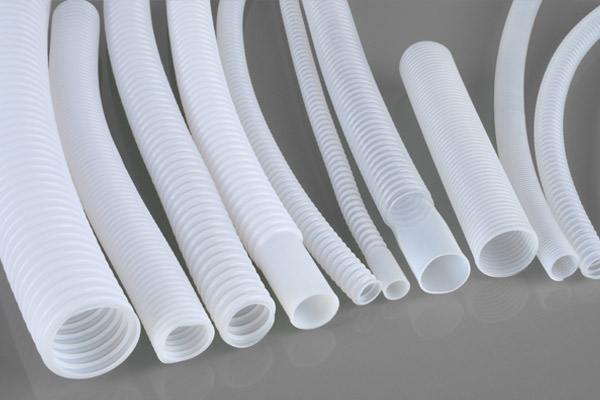

Corrugated / Convoluted PTFE hoses: These incorporate helical or undulating inner walls to allow enhanced flexibility and bending performance, at the cost of slightly greater internal turbulence. They are beneficial when tight bending or dynamic motion is required.
In addition, hybrid designs exist — e.g. smooth inner with corrugated outer, to balance flow performance and flexibility. Further variants include flat-PTFE hoses, PTFE-lined steel pipes, PTFE hoses with flanges, and conductive (anti-static) PTFE hoses.
2. Key Performance Characteristics
When specifying or evaluating PTFE hoses, several performance parameters are crucial:
Temperature range: PTFE hoses typically function reliably between approximately –60 °C up to +260 °C (or more in controlled cases). However, at higher temperatures the allowable pressure rating must often be derated.
Chemical resistance: PTFE is nearly inert to almost all chemicals, including strong acids, alkalis, solvents, and aggressive media — this is one of its primary advantages.
Low friction / non-stick: PTFE’s very low coefficient of friction (approx. 0.05–0.20) gives smooth internal surfaces that resist fouling and permit high flow velocities with minimal pressure drop.
High purity / inertness: Because PTFE does not leach or degrade, it’s favored in pharmaceutical, food, semiconductor, and analytical applications.
Pressure / burst strength: Reinforcement (e.g. stainless steel braids) enables PTFE hoses to handle significant internal pressures. But the hose wall is thin, so higher pressures must be balanced against durability and safety margins.
Vacuum / collapse resistance: Under vacuum or sub-atmospheric internal pressure, the hose may collapse unless supported internally or externally via metal braids, helixes, or support members.
Static discharge / electrical conductivity: In high flow or electrically resistive fluids, static charge may build up in the PTFE core. To mitigate risk, conductive (anti-static) PTFE materials or embedded conductive paths are sometimes used.
Flex life / fatigue resistance: Repeated flexing or vibration may lead to fatigue failure in hose linings or in the junctions between hose and fittings. Proper hose design, smooth transitions, and high-quality assembly are essential.
3. Design & Selection Considerations
When designing or choosing a PTFE hose for a given application, some practical points to watch:
Bend radius: Corrugated designs allow tighter bend radii, but even then, exceeding recommended values shortens life.
Temperature derating: As temperature rises, the hose’s pressure rating should be reduced. Many manufacturers publish correction factors.
Length and pulsation: For pulsating systems (hydraulic, gas pulsations), one must consider fatigue stress and dynamic forces.
End fittings / flanges / transitions: The interface between hose and fitting must avoid stress concentrations, ensure sealing, and often incorporate smooth transitions.
Cleanability and dead zones: In hygienic or pure-fluid systems, the hose should avoid crevices or dead zones where fluid can stagnate. Smooth bore designs excel here.
Static grounding: If the fluid or environment is flammable or prone to static discharge, the hose assembly must include safe grounding paths.
Compliance / certification: For applications in food, pharma, medical, or clean industries, certifications like FDA, USP, ISO, or other regulatory compliance may be required.
4. Derived Products and Innovations
Beyond conventional hoses, the PTFE ecosystem includes several innovative derivatives and product extensions:
PTFE-lined steel or metal pipes: These are rigid or semi-rigid conduits with a PTFE lining inside a metal shell, combining mechanical strength with chemical resistance.
PTFE expansion joints / bellows: To absorb thermal expansion or mechanical misalignment in piping systems, PTFE-based expansion joints or bellows (sometimes with metal reinforcement) are used.
Conductive / anti-static PTFE hoses: By blending PTFE with conductive fillers (e.g. carbon black) or embedding conductive paths, these hoses reduce static accumulation risk.
Flat PTFE hoses: For applications requiring compact or space-saving geometries (e.g. compressed layouts), flat or ribbon-style PTFE hoses are designed.
PTFE hoses with specialized coatings: For example, fire-resistant covers, silicone jacket overlays, abrasion-resistant outer jackets etc., to protect the hose in harsh environments.
Hybrid assemblies: Combining PTFE hoses with outer flex elements or composite jacket layers, to enhance mechanical strength, thermal insulation, or abrasion resistance.
5. Challenges & Best Practices
While PTFE hoses offer exceptional performance, real-world application demands attention in several areas:
Quality control and manufacturing consistency: Because PTFE molding, extrusion, sintering, and assembly are precise processes, variation in wall thickness, residual stresses, or defects can compromise performance.
Fatigue and micro-cracking: Especially at high pressures or cyclic loads, micro-cracks may develop at transitions (e.g. hose-to-fitting), so careful design, smooth transitions, and rigorous testing are vital.
Permeation / gas leakage: Though PTFE is highly impermeable to many species, certain small gas molecules (e.g. hydrogen, helium) may permeate under high pressure gradients; sintered or post-processed PTFE may help mitigate.
Cost / economics: PTFE and associated fabrication processes cost more than conventional hoses, so the benefit must justify the premium.
Aging / UV / mechanical wear: Though PTFE is UV-resistant and chemically stable, the external braid, jacket, or fittings may degrade in harsh conditions (e.g. abrasion, repeated bending).
Conclusion
PTFE hoses and their derivative products represent a high-performance solution in fluid and gas transfer systems where chemical resistance, temperature tolerance, purity, and longevity are critical. A capable manufacturer like Comflex / Chinahoseflex, with a diverse PTFE hose portfolio (smooth bore, corrugated, flat, flanged, lined pipe, etc.), is well-positioned to serve demanding industrial markets.
