Description
Flexible Stainless Steel Wire Braided Corrugated PTFE Hose
1.Description
Construction: Tube: smooth bore PTFE
Cover: SS304 / SS316 Braided
Sahpe of hose: Smooth or corrugated
Temperature: -54ºC to +220ºC
Application: Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc
Coil length: 20m-100m (Random Length).
Standard: SAE100 R14
Connector: JIC,NPT,BSPFitting, flange etc.
| Item code | Inner Diameter | Outer Diameter | Working Pressure | Min. Bending Radius | Approx. Weight | |
| inch | mm | mm | bar | mm | Kg/m | |
| PS-8 | 5/16″ | 8.0 | 13.5 | 97 | 20.3 | 0.15 |
| PS-10 | 3/8″ | 10.0 | 14.5 | 76 | 22.5 | 0.17 |
| PS-12 | 1/2″ | 13.0 | 19.5 | 50 | 25.4 | 0.31 |
| PS-16 | 5/8″ | 16.0 | 24.5 | 45 | 76.2 | 0.47 |
| PS-19 | 3/4″ | 19.0 | 27.3 | 38 | 88.9 | 0.57 |
| PS-25 | 1″ | 25.0 | 35.0 | 30 | 99 | 0.8 |
| PS-32 | 1-1/4” | 32.0 | 33.0 | 25 | 112 | 0.98 |
Flat PTFE Hose
The Model type PTFE Hose is a smooth bore PTFE hose with a stainless steel braiding, available up to 1-1/4″ diameters. The diameters listed reflect nominal sizing.
It is lightweight, and handles a very broad range of chemicals at relatively high temperatures and pressures, and will not deteriorate in service. It is used in countless tough industrial applications where continual large bending is not required. Commonly provided with JIC, NPT or many other fittings.
Also available with a convoluted PTFE core for tighter bends
Corrugated PTFE Hose
The Model type PTFE Hose is a convoluted PTFE hose with a stainless steel braiding, available up to 4″ diameters.The convolutions provide a far tighter bend radius than most smooth bore alternatives.It is lightweight and handles a very broad range of chemicals at relatively high temperatures and pressures, including full vacuum.
It is used in countless tough industrial applications where a smooth bore is not required. Also available in conductive PTFE.
Commonly provided with JIC, NPT or many other fittings.
2.Pictures of hose

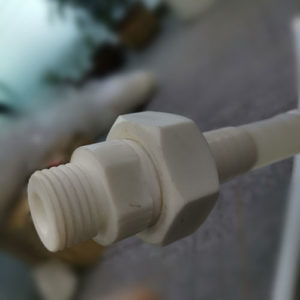

3.PTFE hose with all kinds of fitting
4.Package
5.FAQ
Q:Who is COMFLEX?
A:COMFLEX is a reliable manufacturer and exporter of flexible metal hose, PTFE hose,expansion joint and conduit in China for more than 25 years in the market.
Q:Quality control, warranty and guarantee
A:We control the quality from raw material. We only work with stated enterprise and their quality is stable; Our workers have in rich experience, our production machinery is advanced; Before packaging, we make very strictly test and inspection by QC.
