Description

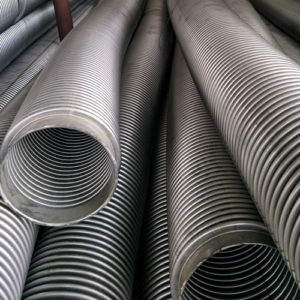

Stainless Steel Flexible Omega type Metal Hose
1.Description
Size range: DN15 up to DN150
Wall thickness: 0.15 up to 0.8mm
Material: Sus304, 304L, 316, 316L, sus321
Pressure range: Up to 128MPa
Hose type: Corrugated metal hoses and helical metal hose
Products end type: Flanges, fittings, camlock couplings, welding nipple, etc..
2. Different connection types
* BSPT Taper Male,
* BSP Cone Female with swivel nut
* BSP Flat face Female with Swivel nut
* DIN2828 camlock couplings
* NPT Fittings
* Flange connections, the flange codes can be DIN2500, ANSI B 16.5, JIS B2210-84.
3. Parameter
NO. | DN | ID | OD | Pitch distance | Wall thickness | Theoretical weight (KG/M) |
| 1 | 15 | 14.4 | 21.5 | 3.5 | 0.3 | 0.28 |
| 2 | 18 | 17.4 | 25.5 | 3.5 | 0.3 | 0.34 |
| 3 | 20 | 19.4 | 27 | 4.5 | 0.3 | 0.38 |
| 4 | 25 | 24.4 | 32.5 | 5 | 0.3 | 0.46 |
| 5 | 32 | 31.4 | 40 | 5.5 | 0.3 | 0.6 |
| 6 | 40 | 39.4 | 50 | 6 | 0.3 | 0.75 |
| 7 | 50 | 49.4 | 63 | 7.5 | 0.3 | 0.9 |
| 8 | 65 | 64.4 | 81 | 9 | 0.3 | 1.6 |
| 9 | 80 | 79.2 | 98 | 10.5 | 0.4 | 2 |
| 10 | 100 | 99.2 | 120 | 13 | 0.4 | 2.6 |
| 11 | 125 | 124 | 150 | 14.5 | 0.5 | 3.9 |
| 12 | 150 | 149 | 180 | 17.5 | 0.5 | 4.3 |

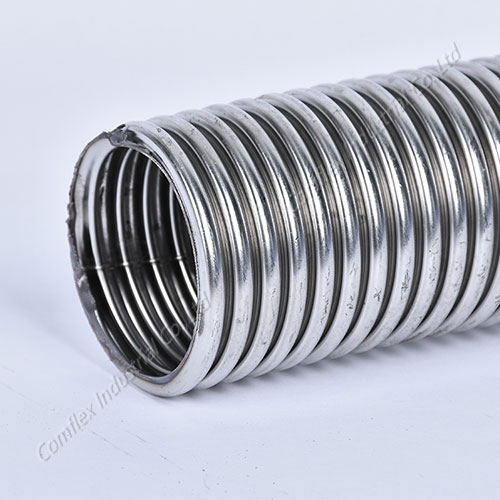

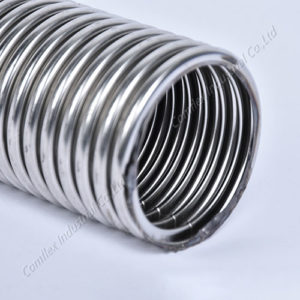

4. Flexible metal hose
Flexible metal hose with different fitting
5. Manufacturing site

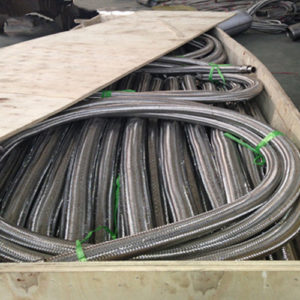

6. Packing&delivery
7. FAQ
Q: Why so many suppliers choose us?
A:Because we are one of the most professional manufacturer of the metal hose with more than 25 years of experience.
Q: What sizes can you make?
A: all sizes from DN15mm up to DN150mm
Q: What kind of fittings can you supply with the metal hose?
A: nuts, adapter, nipple, with BSP or NPT thread, we can customize our hose according to your requirement
We need to know the following information to give you our best quotation for the hose
A: Technical drawings
B: Material of the hose: sus304,321 or 316L
C: Material of the fittings, are they flange or pipe ends? Flange code?
D: Length and Diameter
E: Working pressure and temperature of the hose
F: Application of the hose
