Stainless Steel Flexible Metal Interlock Conduit

  • Size: ID4-ID51mm,OD6-56mm
  • Material Shape:Round Wire
  • Material: SUS304, Galvanized Steel
  • Package: Carton Box
  • MOQ: 100meters
  • Payment Terms: T/T
  • Company Brand:Comflex
  • Transport Package: Standard Seaworthy & Air Transportation
  • HS Code: 8307100000
  • Origin: Jiangsu, China

Description

Stainless Steel Flexible Metal Interlock ConduitStainless Steel Flexible Metal Interlock Conduits

1.Description

Material: Sus304, galvanized steel
Feature: High tensile strength, anti-fatigue, high temperature proof
Good flexibility, easy installation, fire protection
Can be PVC coated or protected with braids
Application: Cable protection
Size range: ID4 till ID56mm
Square lock/Single Lock Conduit

Material:stainless steel grade 304
galvanized steel
SizeID4-56mm
ID4-51mm
OD6-56mm
Thickness0.2-1.5mm
Pressure-10 to 100 bar
Temperature-40 to 120 degree
CertificationCE/ROHS
Fittingsoptional
CoatingPVD coating optional
Customizeacceptable
FeaturesIt has excellent performance of waterproof, insulation and tensile property.
The counter-lock structure provide a powerful tensile resistance, hard to break and deform
High flexibility
Usage fieldPower plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.
Payment TermTT / West Union / PYAPAL
Delivery TimeIn 15 days
DeliveryShipment / DHL / TNT/ FEDEX
Technical data for flexible conduit
No.Size
(inch)
Inner diameter
(mm)
Outer diameter
(mm)
PVC coated ODPackage
(M)
W030050S1F13.005.006.00100
W040060S1F14.006.007.00100
W050070S1F15.007.007.60100
W060080S1F16.008.009.20100
W070090S1F17.009.009.80100
W080010S1F18.0010.0011.00100
W090011S1F19.0011.0012.00100
W010012S1F110.0012.0013.00100
W095125S1F1 1/49.5012.5013.2050
W125157S1F1 3/812.5015.7016.6050
W030060S1F1 1/216.1019.5020.5050
W030060S1F119.1022.2023.0050
W208255S1F1 3/420.8024.3025.5040
W220268S1F122.0025.6026.8040
W264316S1F1126.4030.0031.6030
W345396S1F11 1/434.5038.0039.6030
W400468S1F11 1/240.0045.0046.8020
W510586S1F2251.0057.0058.6010

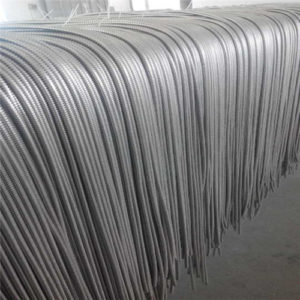

2.Picture of conduit
Stainless Steel Flexible Metal Interlock Conduits

Stainless Steel Flexible Metal Interlock Conduits
Stainless Steel Flexible Metal Interlock Conduits

Stainless Steel Flexible Metal Interlock Conduits
Stainless Steel Flexible Metal Interlock Conduits

3.Test
Stainless Steel Flexible Metal Interlock Conduits
4.Packages&delivery
Stainless Steel Flexible Metal Interlock Conduits



5.FAQ

Q: What material hose do you have?
A: stainless less steel (garde201, 3045, 316L, 321), galvanized steel, aluminum.

Q: What size hose and what type do you have?
A:Interlock conduit Size: ID4-ID51mm,OD6-56mm

Q: Can you customize for us?
A: yes we accept customize, including hose size, diameter, and pvc coating material & thickness.

We need to know the following information before we send quotation for the conduit you need:
A:Size range
B:Material of the conduit, we supply only stainless steel flexible conduit
C:Structure of the flexible conduit: interlock or square lock
D:PVC/PU coated or not, what color you need
E:Quantity
