Stainless Steel Corrugated Flexible Metal Gas Hose
1. Description
Wall thickness: 0.15 up to 0.8mm
Material: Sus304, 304L, 316, 316L, sus321, copper
Pressure range: Up to 128MPa
Hose type: Corrugated metal hoses and helical metal hose
Products end type: Flanges, fittings, camlock couplings, welding nipple, etc..
2. Different connection types
* BSPT Taper Male,
* BSP Cone Female with swivel nut
* BSP Flat face Female with Swivel nut
* DIN2828 camlock couplings
* NPT Fittings
3. Parameter
NO. | DN | ID | OD | Pitch distance | Wall thickness | Theoretical weight (KG/M) |
| 2 | 15 | 14.4 | 21.5 | 3.5 | 0.3 | 0.28 |
| 3 | 18 | 17.4 | 25.5 | 3.5 | 0.3 | 0.34 |
| 4 | 20 | 19.4 | 27 | 4.5 | 0.3 | 0.38 |
| 5 | 25 | 24.4 | 32.5 | 5 | 0.3 | 0.46 |
| 6 | 32 | 31.4 | 40 | 5.5 | 0.3 | 0.6 |

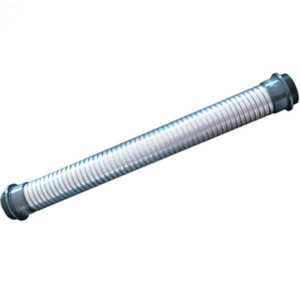

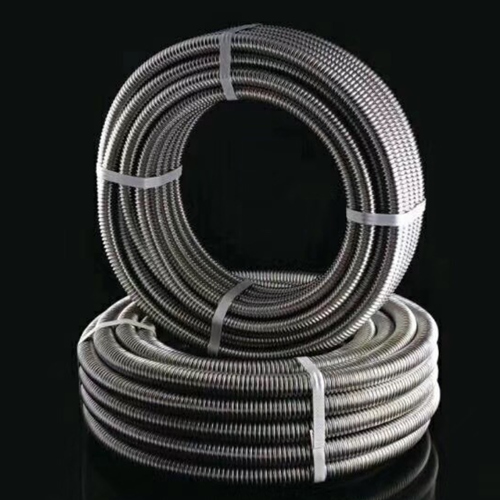

4. Product Pictures
5. Manufacturing site
6. FAQ
Q: Why so many suppliers choose us?
A:Because we are one of most professional manufacturer of the metal hose with more than 25 years of experience.
Q: What sizes can you make?
A: all sizes from DN15 up to DN32
Q: What kind of fittings can you supply with the metal hose?
A: nuts, adapter, nipple, with BSP or NPT thread, we can customerized our hose according to your requirement
We need to know following information to give you our best quotation for the hose
A: Technical drawings
B: Material of the hose :sus304,321 or 316L
C: Material of the fittings, are they flange or pipe ends? Flange code?
D: Length and Diameter
E: Working pressure and temperature of the hose
F: Application of the hose
