Stainless Steel Braided Flexible Metal Hose with Fittings
1. Description
Size range: DN6 up to DN600
Wall thickness: 0.15 up to 0.8mm
Material: Sus304, 304L, 316, 316L, sus321, copper
Pressure range: Up to 128MPa
Hose type: Corrugated metal hoses and helical metal hose
Products end type: Flanges, fittings, camlock couplings, welding nipple, etc..
Wall thickness: 0.15 up to 0.8mm
Material: Sus304, 304L, 316, 316L, sus321, copper
Pressure range: Up to 128MPa
Hose type: Corrugated metal hoses and helical metal hose
Products end type: Flanges, fittings, camlock couplings, welding nipple, etc..
2. Different connection types
- BSPT Taper Male,
- BSP Cone Female with swivel nut
- BSP Flat face Female with Swivel nut
- DIN2828 camlock couplings
- NPT Fittings
- Flange connections, the flange codes can be DIN2500, ANSI B 16.5, JIS B2210-84.
3. Parameter
NO. | DN | ID | OD | Pitch distance | Wall thickness | Theoretical weight (KG/M) |
| 1 | 12 | 11.6 | 18 | 3 | 0.2 | 0.17 |
| 2 | 15 | 14.4 | 21.5 | 3.5 | 0.3 | 0.28 |
| 3 | 18 | 17.4 | 25.5 | 3.5 | 0.3 | 0.34 |
| 4 | 20 | 19.4 | 27 | 4.5 | 0.3 | 0.38 |
| 5 | 25 | 24.4 | 32.5 | 5 | 0.3 | 0.46 |
| 6 | 32 | 31.4 | 40 | 5.5 | 0.3 | 0.6 |
| 7 | 40 | 39.4 | 50 | 6 | 0.3 | 0.75 |
| 8 | 50 | 49.4 | 63 | 7.5 | 0.3 | 0.9 |
| 9 | 65 | 64.4 | 81 | 9 | 0.3 | 1.6 |
| 10 | 80 | 79.2 | 98 | 10.5 | 0.4 | 2 |
| 11 | 100 | 99.2 | 120 | 13 | 0.4 | 2.6 |
| 12 | 125 | 124 | 150 | 14.5 | 0.5 | 3.9 |
| 13 | 150 | 149 | 180 | 17.5 | 0.5 | 4.3 |
| 14 | 200 | 198.8 | 240 | 24 | 0.6 | 6.8 |
| 15 | 250 | 248.4 | 300 | 28 | 0.8 | 11 |
| 16 | 300 | 298 | 355 | 33.5 | 1 | 17.5 |
| 17 | 350 | 348 | 410 | 35 | 1 | 20 |
| 18 | 400 | 397.6 | 460 | 40 | 1.2 | 25 |
| 19 | 450 | 447.6 | 489 | 45 | 1.2 | 29 |
| 20 | 500 | 497.6 | 545 | 45 | 1.2 | 33.5 |
| 21 | 600 | 597.6 | 650 | 50 | 1.2 | 40.5 |
4. Flexible metal hose

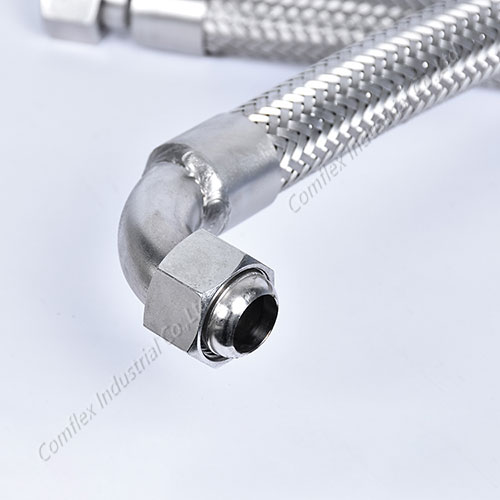

Flexible metal hose with different fitting
5.Test of Flexible Metal Hose
6. Manufacturing site
7. Packing&delivery
8. FAQ
Q: Why so many suppliers choose us?
A:Because we are one of most professional manufacturer of the metal hose with more than 25 years of experience.
Q: What sizes can you make?
A: all sizes from DN6 up to DN400
Q: What kind of fittings can you supply with the metal hose?
A: nuts, adapter, nipple, with BSP or NPT thread, we can customerized our hose according to your requirement
We need to know following information to give you our best quotation for the hose
A: Technical drawings
B: Material of the hose :sus304,321 or 316L
C: Material of the fittings, are they flange or pipe ends? Flange code?
D: Length and Diameter
E: Working pressure and temperature of the hose
F: Application of the hose
